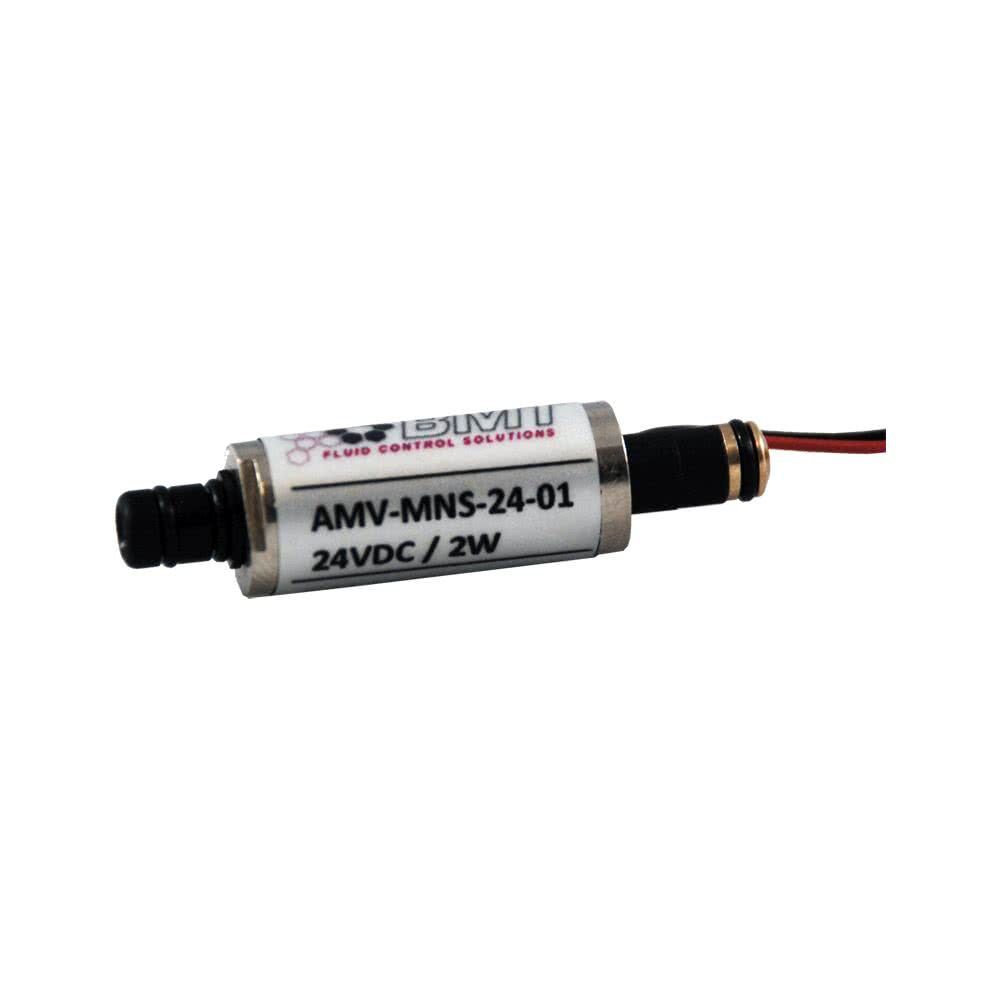

AMV-MNN-24-01 Axial inline microvalve, plastic with brass inserts, NBR, hose nozzle



2/2-way normally closed with housing plastic / brass.
High pressure range up to 10bar.
Fast reaction time

on stock
Only %1 left
Article no
AMV-MNN-24-01
€59.00

You need larger quantities? We would like to make you an individual offer. Angebot jetzt anfragen

More Information
Article no AMV-MNN-24-01
Media etc., Flüssigkeiten, Luft, Wasser
Material Plastic with brass inserts
Connection size Hose nozzle
Valve type 2-way normally closed
Material (seal) NBR
Max. Druck Gleichspannung (DC) 10

2/2-way normally closed with housing plastic / brass.
High pressure range up to 10bar.
Fast reaction time
Very high flow: 100 l / min air at 10 bar
Small dimensions: diameter 10 mm x 42.5 mm
Due to the axial flow direction, it is optimally suited for confined spaces.
The inline valves are dead-space-free and offer optimum flushability due to their design.
