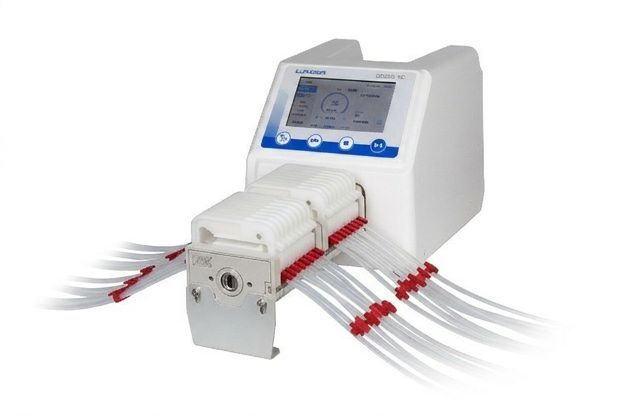

Multichannel laboratory peristaltic pump with up to 24 channels and 10 rollers | 5″ color touchscreen
The GD200‑1B is a tubing pump from the GD series designed for precise and reproducible dispensing and transfer processes up to 200 rpm and up to 24 channels when used with DG pump heads.
- Speed range 0.01–100 rpm for fine dosing and continuous pumping
- 5″ color touchscreen with intuitive, color‑coded user interface
- Operating modes Continuous · Time · Volume for versatile applications
- Comprehensive calibration functions (flow and volume calibration, optional auto‑calibration with flow meter)
- Optional closed‑loop control with flow meter for increased process reliability
- Flexible integration via external signals, foot switch, or hand dispenser
Compatible with the DG pump head series for multi‑channel operation with up to 24 channels
on stock
Article no
GD200-1B~~DG
937.25 €
These multi-channel laboratory peristaltic pumps are essential instruments in the world of biological, chemical and medical research. The BT100-1L laboratory peristaltic pumps enable precise dosing and continuous liquid dispensing in a variety of laboratory applications.
This multi-channel peristaltic pump works on the basis of a peristaltic pump mechanism. They use hoses that are crimped by a rotating roller or hose crimp. This process creates a smooth, low-pulsation fluid flow, which is particularly important when precise dosages are required.
Laboratory applications for multi-channel peristaltic pumps
- Analytical chemistry: For the precise feeding of reagents into analytical devices.
- Biotechnology: In the cultivation of microorganisms, cell cultures or the production of biopharmaceuticals.
- Medical Research: For dispensing samples in clinical testing, drug discovery and medical diagnostic procedures.
- Environmental analysis: For monitoring water and soil samples in environmental studies.
- Food and Beverage Industry: For the production of food, beverages and pharmaceutical products.
| Merkmal | GD200‑1B |
|---|---|
| Pumpentyp | General Dispensing Pump |
| Kanäle | Einkanal |
| Drehzahlbereich | 0,01 – 200 rpm |
| Abfüllvolumen | 0,001 – 9.999 (µL, mL, L) |
| Abfüllzähler | 0 – 999.999 (0 = unbegrenzt) |
| Intervallzeit | 0,1 s – 9.999 h |
| Laufzeit | 0,1 s – 9.999 h |
| Drehzahlauflösung | 0,01 rpm (< 100 rpm), 0,1 rpm (≥ 100 rpm) |
| Drehzahlgenauigkeit | ± 0,1 % |
| Arbeitsmodi | Kontinuierlich · Zeit · Volumen (farbcodiert) |
| Anzeige | 5″ Farb‑LCD |
| Bedienung | Touchscreen + physische Tasten |
| Förderrichtung | Rechts‑ und Linkslauf |
| Kalibrierfunktionen | Durchfluss‑, Volumen‑Kalibrierung, Auto‑Kalibrierung mit optionalem Flow Meter |
| Sprachsteuerung | Start / Stopp / Pause / Richtungswechsel / Volllast |
| Steuerungsarten | Touch & Tasten · Fußschalter / Handdispenser · externe Signale · Kommunikationsprotokoll |
| Closed‑Loop‑Regelung | Optional mit Flow Meter |
| Rezepturen | Bis zu 100 speicherbare Parameter |
| Benutzerverwaltung | Dreistufig (Administrator / Entwickler / Bediener) |
| Log‑Aufzeichnung | Bis zu 4.000 Einträge, exportierbar |
| Zeitgesteuerter Start | Countdown & Start zu voreingestelltem Zeitpunkt |
| Tasten‑ & Display‑Sperre | Aktivierbar |
| Geräuschpegel | ≤ 50 dB(A) |
| Schutzart | IP32 |
| Abmessungen (L × B × H) | 305 × 190 × 201 mm |
| Gewicht (Drive) | ca. 3,5 kg |
| Stromversorgung | AC 100–240 V, 50/60 Hz |
| Leistungsaufnahme | 30 W |
| Pumpenkopf | Schlauch | Max. Förderleistung (mL/min) |
| DG‑1/2/4/6/8/12/16/24 (6‑Rollen) | ID ≤ 3,17 mm · Wandstärke 0,8–1,0 mm | 48 @ 100 U/min |
| DG‑1/2/4/6/8/12/16/24 (10‑Rollen) | ID ≤ 3,17 mm · Wandstärke 0,8–1,0 mm | 32 @ 100 U/min |
