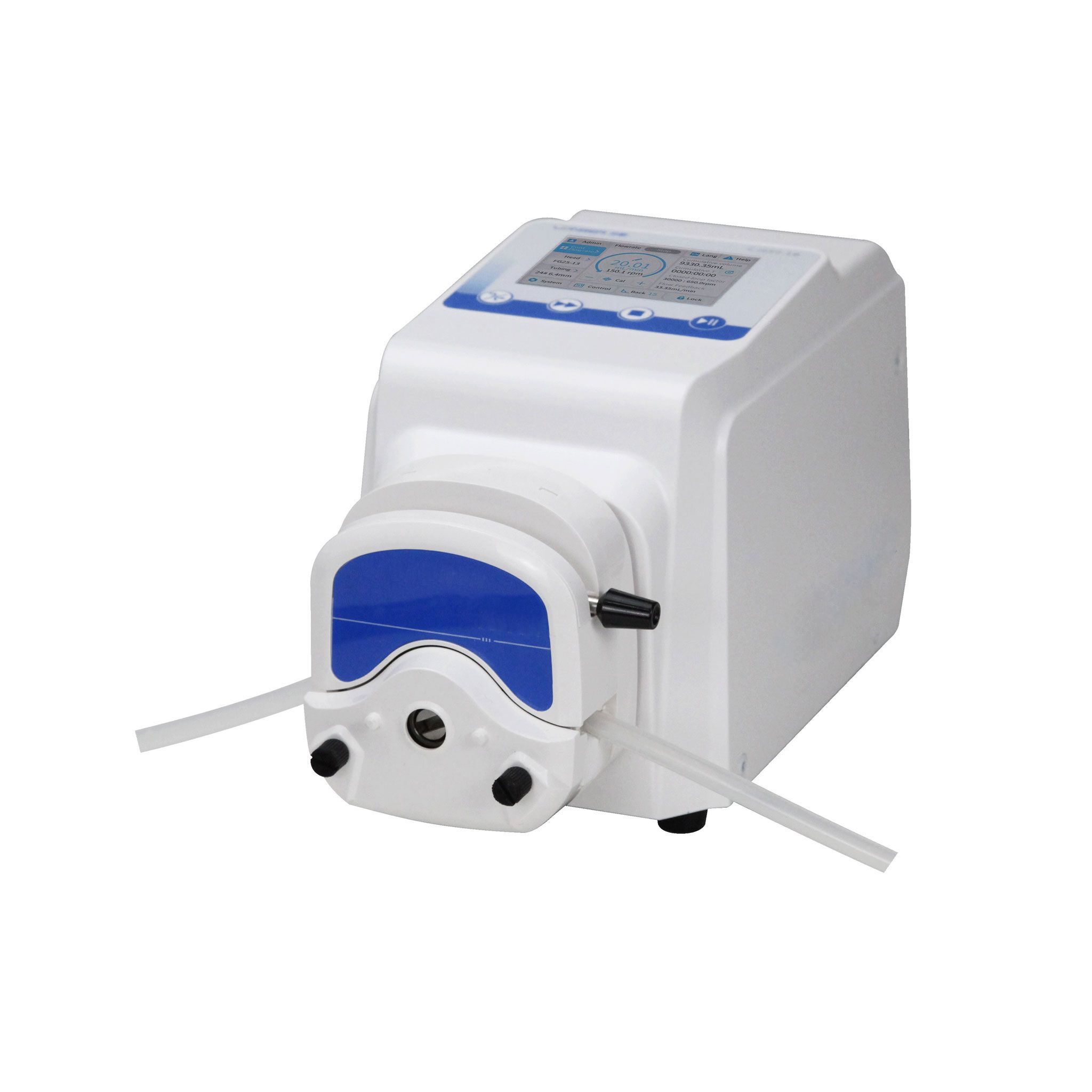

Dosing Peristaltic Pumps with Flow Rate Control up to 1,000 ml/min - 200 RPM
- Direct flow rate and dosing volume control for precise dispensing applications
- Speed range from 0.01 to 200 rpm
- Flow rates up to approx. 1,000 ml/min
- Automatic flow rate and volume calibration
- Optional closed-loop operation with external flow meter
- Three operating modes: Continuous, Timed Dispensing and Volume Dispensing
- High control accuracy of ±0.1%
- 3.5" color touchscreen with intuitive operation
about 2-3 weeks
Only %1 left
Article no
GF200-1B
$ 882.05
Technical Specifications
| Specification | GF200-1B |
|---|---|
| Model | GF200-1B |
| Speed Range | 0.01-200 rpm |
| Speed Resolution | 0.01 rpm (<100 rpm) 0.1 rpm (≥100 rpm) |
| Speed Accuracy | ±0.1% |
| Dosing Volume | 0.001-9999 µL · mL · L |
| Timed Dosing Counter | 0-999,999 (0 = unlimited) |
| Interval Time | 0.1 s-9,999 h |
| Run Time | 0.1 s-9,999 h |
| Calibration Functions | Flow rate calibration · Volume calibration · Auto-calibration with flow meter (optional) |
| Display | 3.5" color LCD displaying flow rate, speed, runtime and operating status |
| Pumping Direction | Clockwise and counterclockwise rotation |
| Operating Modes | Continuous Mode (blue) Timed Dispensing Mode (purple) Volume Dispensing Mode (orange) |
| Continuous Mode | Constant speed or constant flow rate |
| Timed Mode | Time-controlled speed or flow rate dispensing with repeat function |
| Volume Mode | Automatic dispensing of a predefined target volume |
| Operation | Touchscreen + keypad |
| Control Methods | Touchscreen · keypad · foot switch · hand dispenser · external signals · communication |
| Parallel Control Sources | Multiple control sources can be activated simultaneously |
| External Start/Stop Control | 5-24 V logic signal or volt-free relay contact |
| External Direction Control | 5-24 V logic signal or volt-free relay contact |
| External Setpoint Input | 4-20 mA · 0-5 V · 0-10 V · 0-10 kHz |
| Communication Interface | RS485 |
| Communication Protocols | Modbus RTU · Longer OEM Protocol |
| Speed Status Output | 10 Hz/rpm open-collector frequency signal |
| Operation Status Output | 24 VDC / 0.1 A relay, open when stopped |
| Direction Status Output | 24 VDC / 0.1 A relay, closed during clockwise rotation |
| Alarm Status Output | 24 VDC / 0.1 A relay, closed when alarm is active |
| Closed-Loop Control | Optional via external flow meter |
| User Management | 3 user levels, individually enabled/disabled |
| Keypad and Display Lock | Available |
| Power-On Behavior | Stops by default; automatic restart in continuous mode configurable |
| Prime Function | Rapid filling or emptying with freely configurable maximum speed |
| Dimensions (L × W × H) | 225 × 145 × 165 mm |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption | 25 W |
| Operating Temperature | 0 to 40 °C |
| Relative Humidity | < 80% |
| Protection Class | IP31 |
| Weight (Drive Only) | 2.65 kg |
Pump Heads
| Pump Head | Tubing | Max. Flow Rate (mL/min) (Single-Channel Operation) |
|---|---|---|
| YZ1515X (3-Roller) | 13# · 14# · 19# · 16# · 25# · 17# · 18# | 730 @ 200 rpm 1460 @ 400 rpm 2350 @ 650 rpm |
| YZ1515X (6-Roller) | 13# · 14# · 19# · 16# · 25# · 17# · 18# | 320 @ 200 rpm 640 @ 400 rpm 960 @ 600 rpm |
| YZ2515X | 15# · 24# | 530 @ 200 rpm 1060 @ 400 rpm 1730 @ 650 rpm |
| YZ15-13X (YZ II 15) | 13# · 14# · 19# · 16# · 25# · 17# · 18# | 730 @ 200 rpm 1460 @ 400 rpm 2380 @ 650 rpm |
| YZ25-13X (YZ II 25) | 15# · 24# · 35# · 36# | 1000 @ 200 rpm 2000 @ 400 rpm 3250 @ 650 rpm |
| DMD15-13 | 13# · 14# · 19# · 16# · 25# | 690 @ 200 rpm 1380 @ 400 rpm 2240 @ 650 rpm |
| FG15-13 | 13# · 14# · 19# · 16# · 25# · 17# · 18# | 800 @ 200 rpm 1600 @ 400 rpm 2600 @ 650 rpm |
| FG25-13 | 15# · 24# | 730 @ 200 rpm 1460 @ 400 rpm 2380 @ 650 rpm |
| DG-1/2/4/6/8 (6-Roller) | ID ≤ 3.17 mm · Wall Thickness 0.8-1.0 mm | 48 @ 100 rpm |
| DG-1/2/4 (10-Roller) | ID ≤ 3.17 mm · Wall Thickness 0.8-1.0 mm | 32 @ 100 rpm |
| DG15-24 | 16# · 25# · 17# | 600 @ 200 rpm 1200 @ 400 rpm 1950 @ 650 rpm |
| DG15-28 | 13# · 14# · ID ≤ 3.17 mm · Wall Thickness 0.8-1.0 mm | 75 @ 100 rpm |
