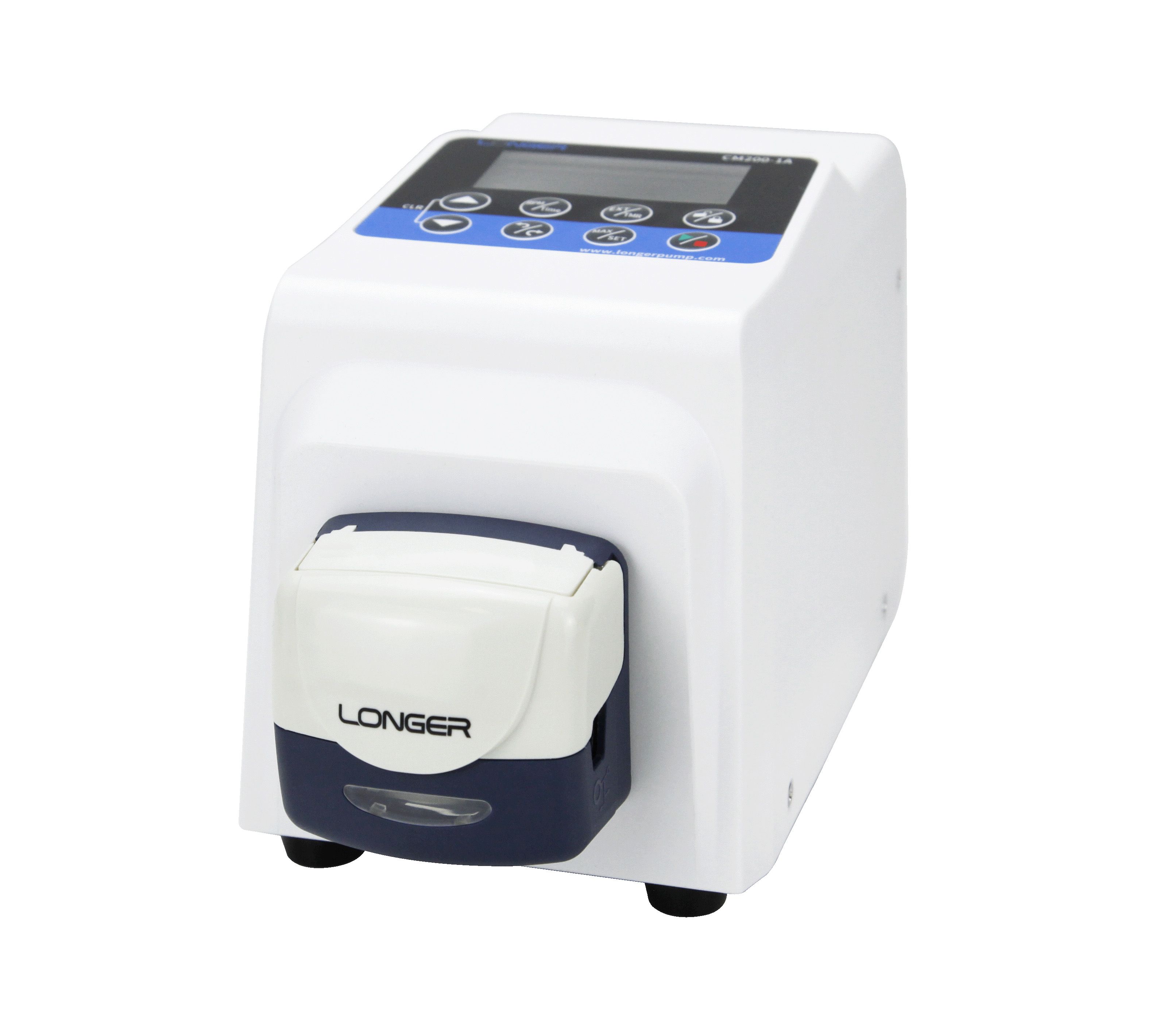

Mini laboratory peristaltic pump with BPH 01 pump head 400rpm - external interface

on stock

Only %1 left

Article no

GM400-1A-BPH01

$ 799.96 Regular Price $ 888.84 Discount 10%

Qty:

You need larger quantities? We would like to make you an individual offer. Request an offer now

Parameters	GM400-1A
Max Flow Rate (Single Channel)	340mL/min
Speed Range	0-400rpm
Speed Resolution	0.01rpm (speed<10rpm)；0.1rpm (10rpm≤speed<100rpm)；1rpm（100rpm≤speed≤max）
Display	LCD screen for pump speed，running direction，time，start/stop status，work mode and control mode
Work Mode	Continuous or timer mode
Control Mode	Keypad，footswitch，external signal or communication control
Calibration	No
External Control	Start/stop：switch signal，level trigger or pulse trigger Running direction control：switch signal，level trigger or pulse trigger Speed control：4-20mA/0-5V/0-10V/0-10kHz，The valid speed range can be configured through communication commands
Communication Control	RS485 interface，Modbus RTU protocol and Longer OEM protocol
Dimensions(L x W x H)	220x115x135mm (including pump head)
Power Supply	AC100-240V，50Hz-60Hz
Operating Temperature	0℃-40℃
Relative Humidity	<80%
IP Rating	IP31
Weight	1.35kg (including pump head)

BPH01
