Pump Heads & Accessoires
Pump heads and accessories help adapt dosing and fluid transfer systems to different requirements in laboratories, research and analytical applications. Our range includes PEEK and PTFE versions with 1/8" NPT connection threads and options for volumes from 5 µl to 1,000 µl. Key selection criteria include the required dosing volume, chemical compatibility with the fluid and compatibility with the pump being used.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

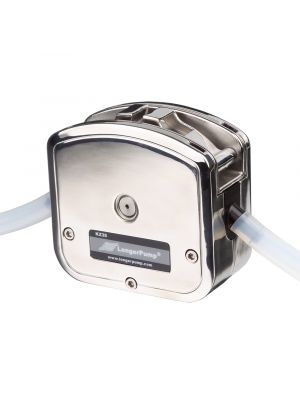

- Stainless Steel Pump head max. 11 l/min - 3 rollers - 1 channel - short ShaftSKU: KZ35-13-B$ 1,390.93

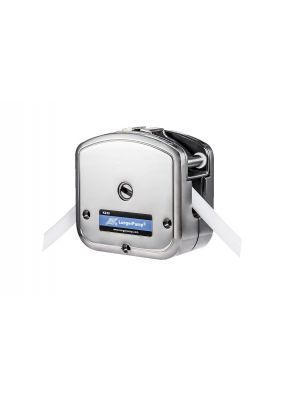

- Stainless-Steel Pump head max. 11 l/min - 3 rollers - 1 channel - long ShaftSKU: KZ35-13-A$ 1,390.93
-
-
-
-
-
-
Pump Heads and Accessories for Precise Dosing Systems
Pump heads and compatible accessories are important components for configuring and adapting dosing and fluid transfer systems. They influence how a pumping system comes into contact with the fluid and which volumes it can handle. In laboratories, research and analytical applications, the pump head, drive, connection and fluid must be matched to one another.
PEEK and PTFE Materials
Our range includes pump head versions made from PEEK and PTFE. Both materials are used in fluid handling, but they differ in their mechanical and chemical properties. PEEK is known for its mechanical strength, while PTFE is known for its broad chemical resistance. The suitability of either material depends on the composition of the fluid, temperature and operating conditions. Compatibility should be verified using the technical information for the specific product.
Different Volumes from 5 µl to 1,000 µl
Options with volumes of 5 µl, 10 µl, 25 µl, 50 µl, 100 µl, 250 µl, 500 µl and 1,000 µl are available for different dosing requirements. The appropriate volume depends on the required dosing quantity and intended process. When selecting a model, ensure that the pump head and drive are compatible and that the desired dosing operation remains within the permitted operating conditions.
Connection with a 1/8" NPT Thread
The listed versions feature a 1/8" NPT connection thread. When integrating a pump head into an existing system, the thread type, connection geometry and required sealing method should be matched. Also check that the intended tubing and other components are compatible with the pump head.
Selecting the Right Pump Head
Several criteria are relevant when choosing a pump head: the required dosing volume, the chemical properties of the fluid, dosing requirements and compatibility with the existing pump. The connection thread and operating conditions should also be taken into account. The technical data for each model can help identify a suitable combination for the intended application.
Pump Heads and Accessories for Laboratories and Research
The right pump head and compatible accessories help tailor a dosing system to a specific application. Compare the available materials, volume options and connection specifications to select the appropriate components for your system.
