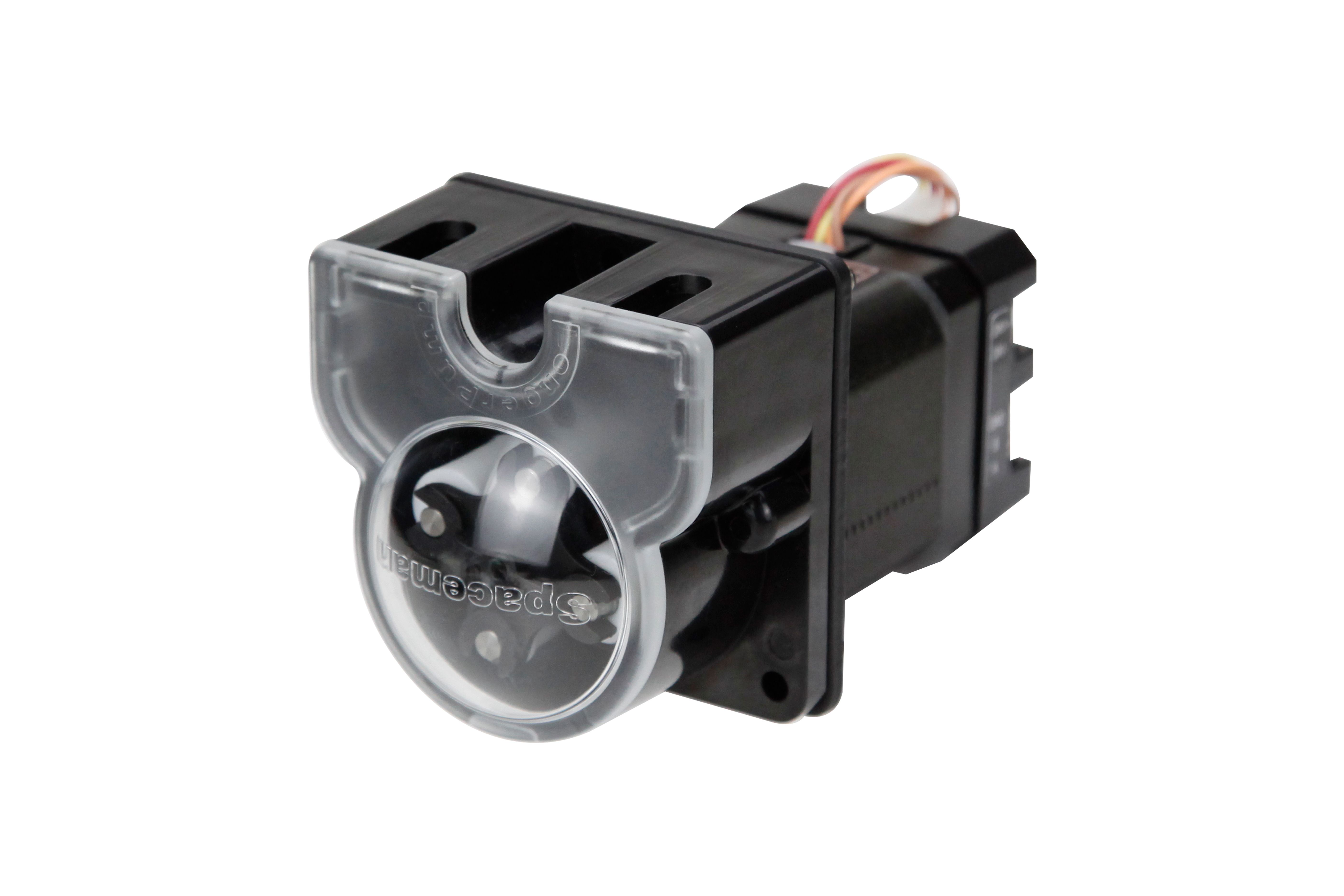

JY15-12 peristaltic pump with OEM stepper motor and driver - 170 ml/min
- Compact size
- NEMA 17 stepper motor with an integrated driver
- Control the pump through RS485, Modbus RTU or Longer OEM protocol
- The pump head JY15-12-C features a transparent cover, allowing for easy monitoring of the pump operation status
about 2-3 weeks
Only %1 left
Article no
T100-SC01-JY15-12
$ 203.32
Technical Parameters
| Parameters | |
| Motor type | Stepper Motor |
| Control circuit board | Yes |
| Max. flow rate(Single Channel) | 170mL/min |
| Pumphead model | JY15-12-C (included) |
| Pump speed | ≤100rpm |
| Control mode | RS485, Modbus RTU or Longer OEM protocol |
| Control feature | Pump speed，start/stop，direction |
| Dimensions(L x W x H) | 110x60x61mm |
| Installation method | Panel mount |
| Power supply | DC24V/8W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
| Weight | 0.54kg |
Flowrates
