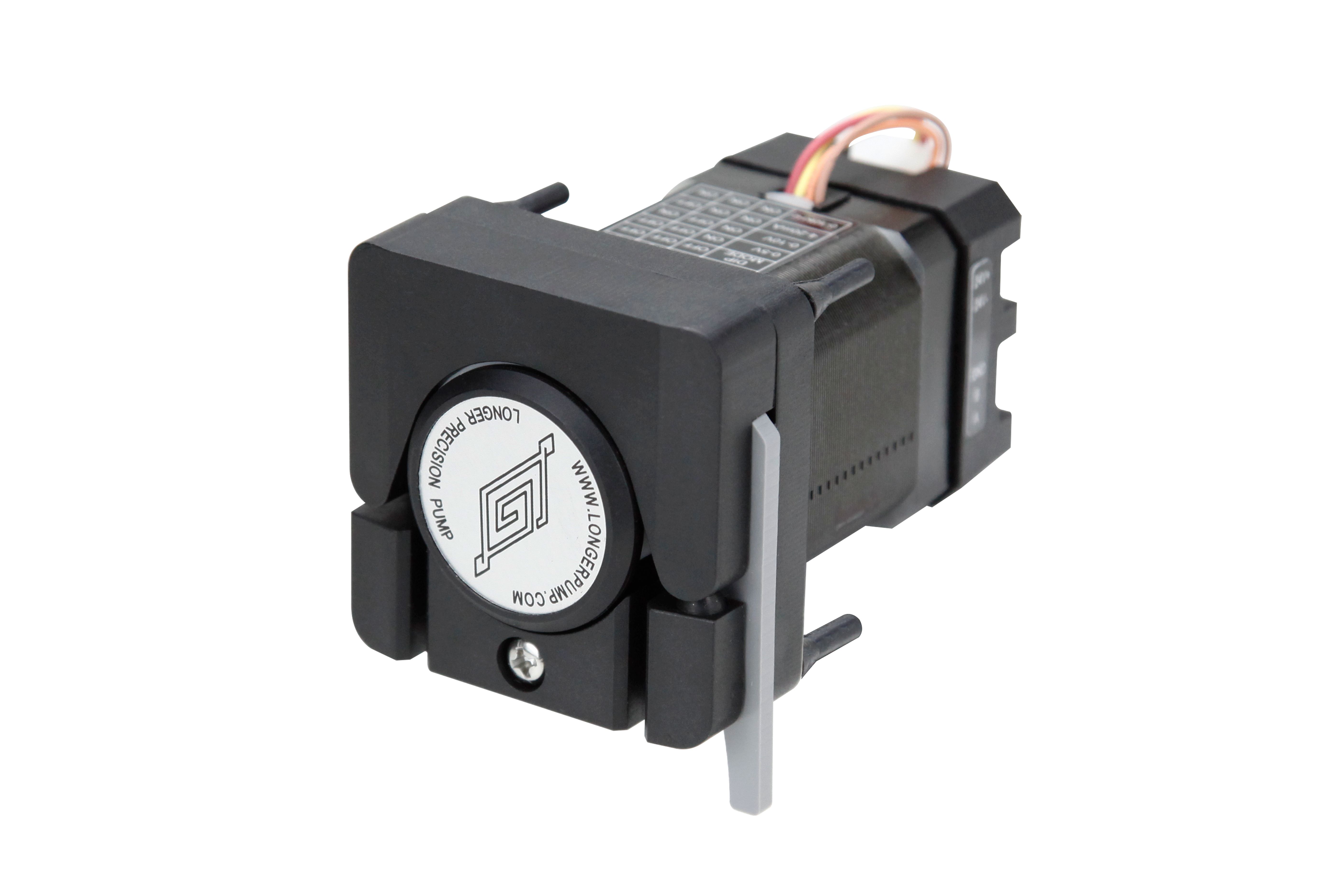

WX10-14-H Schlauchpumpe mit OEM-Schrittmotor und Treiber - 40 ml/min
- Compact size and structure
- NEMA 17 stepper motor with an integrated driver
- Communication control of the pump via the RS485 interface (supporting the Modbus RTU)
- The integrated pump head WX10-14-H features 4 rollers for low pulsation
- WX10-14-H pump head accepts various tubing sizes (with 0.8mm-1.0mm wall thickness)
about 2-3 weeks
Only %1 left
Article no
T100-SC01-WX10-14-H
$ 164.49
Technical Parameters
| Parameters | |
| Motor type | Stepper Motor |
| Control circuit board | Yes |
| Max. flow rate(Single Channel) | 40mL/min |
| Pumphead model | WX10-14-H (included) |
| Pump speed | ≤100rpm |
| Control mode | RS485，Modbus RTU or Longer OEM protocol |
| Control feature | Pump speed，start/stop，direction，prime status，via RS485 |
| Dimensions(L x W x H) | 94x59x67.5mm |
| Installation method | Panel mount |
| Power supply | DC24V/8W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
| Weight | 0.47kg |
Flowrates:
