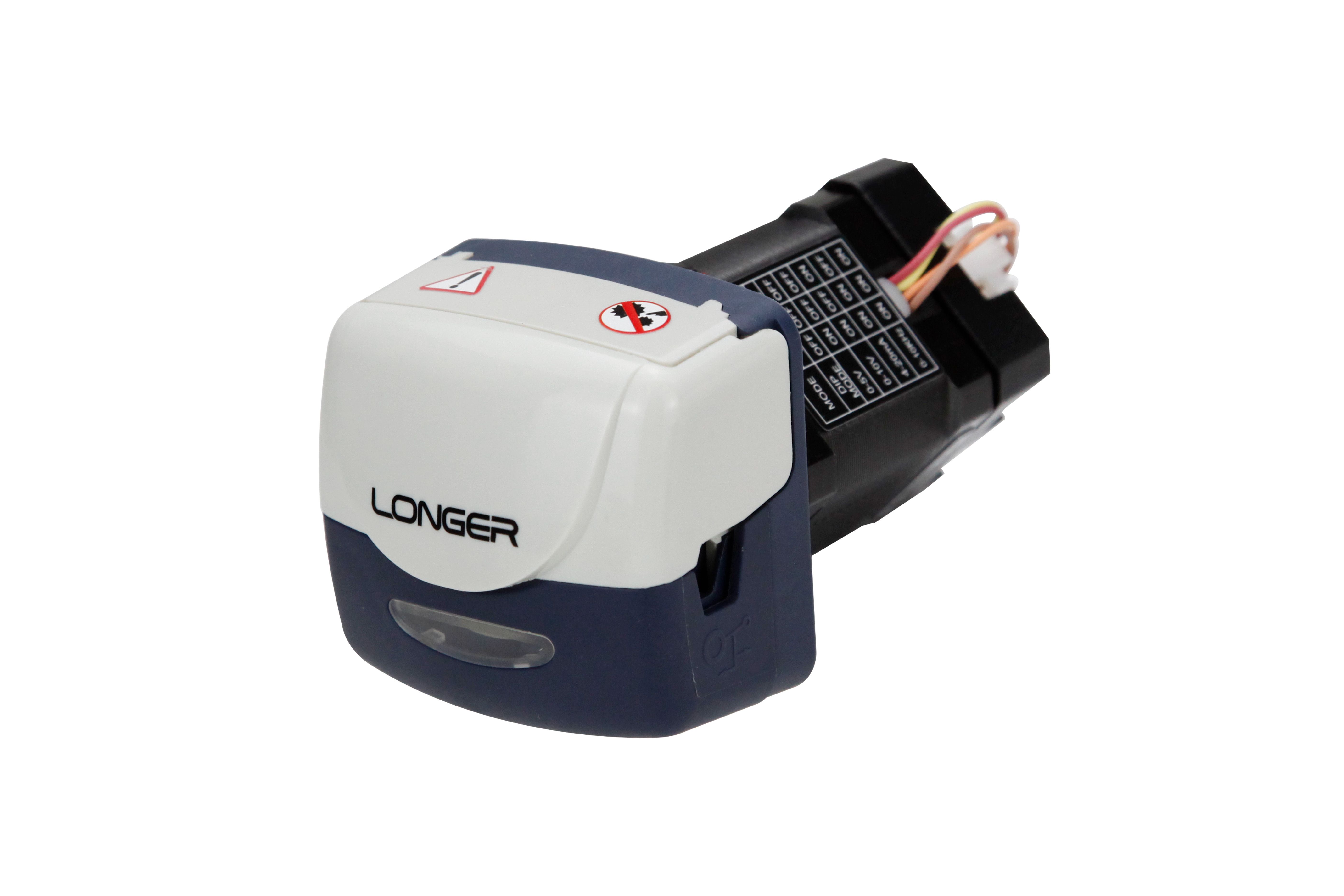

BPH01 Peristaltic Pump with 100rpm OEM Stepper Motor and Driver - 82ml/min
- Compact size and structure
- NEMA 17 stepper motor with an integrated driver
- Control the pump through RS485, Modbus RTU or Longer OEM protocol
- The pump head BPH01 has flip-type design for easier tubing loading
- 4 rollers in the BPH01 pump head provide low pulsation fluid transfer
- BPH01 pump head accepts various tubing sizes (with 1.6mm wall thickness)
about 2-3 weeks
Only %1 left
Article no
T100-SC01-BPH01
$ 293.25
Technical Parameters
| Parameters | |
| Motor type | Stepper Motor |
| Control circuit board | Yes |
| Max. flow rate(Single Channel) | ≤82ml/min |
| Pumphead model | BPH01 (included) |
| Pump speed | ≤100rpm |
| Control mode | RS485, Modbus RTU or Longer OEM protocol |
| Control feature | Pump speed，start/stop，direction |
| Dimensions(L x W x H) | 117x64x63mm |
| Installation method | Panel mount |
| Power supply | DC24V/8W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
