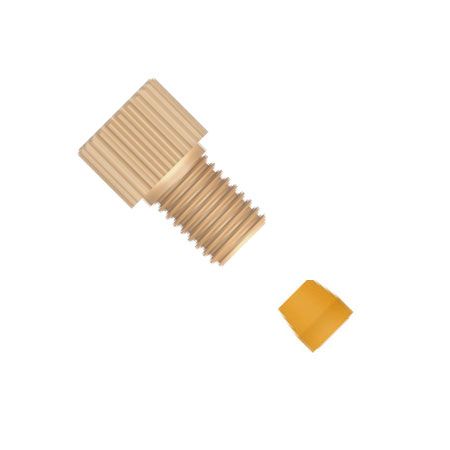

B-RP-103018 PEEK 1/4-28UNF Short Flangeless Fitting - 3.2mm OD Ferrule Set

Connection thread male 1

Tubing size

Qty:

Set consisting of:

Standard fittings with straight threads, which are tool-free and durable.

on stock

Only %1 left

Article no

B-RP-103018

$ 6.44

Qty:

You need larger quantities? We would like to make you an individual offer. Request an offer now

Step 1. Slide the PEEK nut, followed by the ETFE ferrule, at least 3/16"(4.7625mm) from the end of clean cut tubing
Step 2. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out
Step 3. Finger tighten the fittings into the port until snug
Step 4. After several uses (especially at high pressure) the ferrules should be replaced

PEEK Flangeless Fitting 2 pieces Setup
