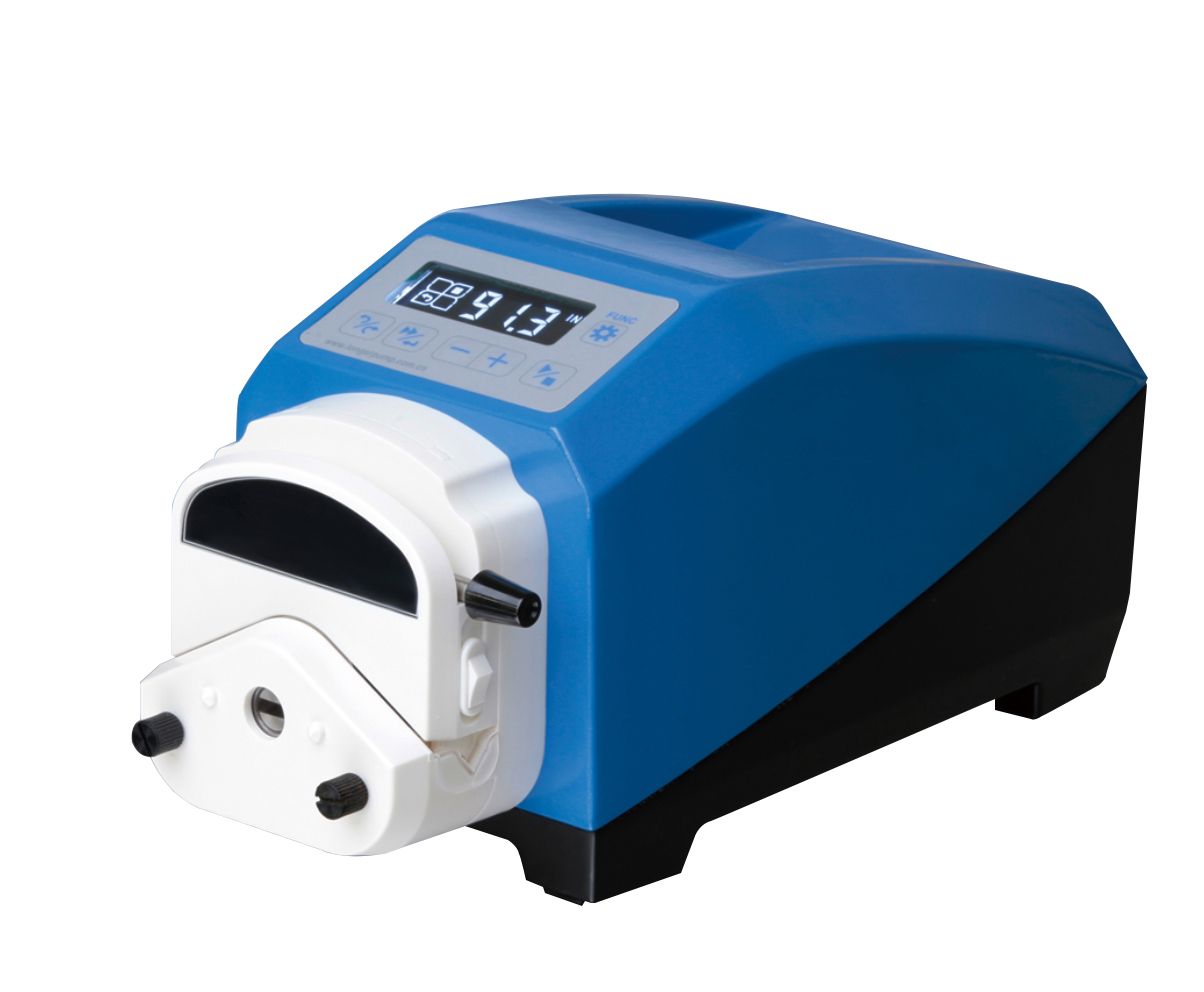

Precise laboratory peristaltic pump up to 500 ml/min - IP65 Incubator
The image may differ from original
Precise laboratory peristaltic pump up to 500 ml/min - IP65 Incubator
Precise laboratory peristaltic pump up to 500 ml/min - IP65 Incubator

G100-2J Precise laboratory peristaltic pump up to 500 ml/min - IP65 Incubator

  • YZ1515X-3 : 1 Kanal, 3 Rollen
  • YZ1515X-6 : 1 Kanal, 6 Rollen
  • DG15-24 : 2 Kanal, 4 Rollen
  • YZ2515X-3 : 1 Kanal, 3 Rollen
  • YZII15 : 1 Kanal, 3 Rollen
  • YZII25 : 1 Kanal, 3 Rollen
  • DMD15-13-B : geringe Pulsation max. 2070 ml/min

Show more ...
  • With aluminium alloy housing, the pump has good corrosive resistance and could be used in corrosive environment.
  • With high IP rating, the pump could be used in wet and dusty environment.

Flow rates: 0-500 ml/min

Max. Number of Channels: 4

Suitable for usage in incubator.

on stock
Only %1 left
Article no
G100-2J
€ 754.00

You need larger quantities? We would like to make you an individual offer. Angebot jetzt anfragen

Tubing & pump heads

Pump head

Number

Inner-diameter

Wall-thickness

max. Flow rate

Weight

YZ1515x, YZII15

13#, 14#, 19#, 16#, 25#, 17#, 18#

0,8 - 7,9 mm

1,6, 1,7 mm

6.3µl/min - 366 ml/min

ca. 5,4 kg

YZ2515x

15#, 24#

4,8, 6,4 mm

2,4 mm

160µl/min - 266 ml/min

ca. 5,4 kg

YZII25

15#, 24#, 35#, 36#

4,8 - 9,6 mm

2,4 mm

160µ/min - 500 ml/min

ca. 5,4 kg

FG15-13

13#, 14#, 19#, 16#, 25#, 17#, 18#

0,8 - 7,9 mm

1,6, 1,7 mm

5.3µl/min - 400 ml/min

ca. 5,3 kg

FG25-13

15#, 24#

4,8, 6,4 mm

2,4 mm

220µl/min - 366 ml/min

ca, 5,3 kg

DMD15-13-B

2*13#, 2*14#, 2*19#, 2*16#, 2*25#

0,8 - 4,8 mm

1,6, 1,7 mm

13µl/min - 345 ml/min

ca, 5,4 kg

DG15-24

16#, 25#, 17#

3,2 - 6,4 mm

1,6 mm

82µl/min - 266 ml/min

ca. 5,8 kg

DG15-28

13#, 14#

0,8 - 1,6 mm
≤3,17mm

1,7 mm
0,8 - 1,0 mm

2.0µl/min - 38 ml/min

ca. 5,7 kg

DG-(1, 2, 4, 6, 8) - 6 Rollen



≤3,17mm

0,8 - 1,0 mm

2.0µl/min - 48 ml/min

ca. 5,2 - 5,6 kg

DG-(1, 2, 4) - 10 Rollen



≤3,17mm

0,8 - 1,0 mm

1.6µl/min - 32 ml/min

ca. 5,2 - 5,6 kg



DG-10 flow DG-6 flow YZ1515X YZII15 flow
YZ2515X YZII25 flow DG15-14 flowDG15-28 DG15-48 flow

DMD15-13-B flow

Specifications pump system

Speed

0rpm - 100rpm,CW/CCW

Speed resolution

0.1rpm

Display

LCD

Control mode

Keypad, external signal control and communication control are available

External control

Start/stop control, direction control

Speed control

0-5V,0-10V,4-20mA,0-10kHz are optional with uniform interface, max speed can be changed within 100rpm.

Communication control

RS485 interface, Longer protocol or Modbus protocol, the communication parameters (baud rate, parity, stop bit) can be set through keypad.

Parameter memory

Running parameters and system parameters will be saved automatically.

Running state when power on

The running state when power on can be set as stop or as previous state.

Prime

Fast filling or emptying at full speed

EMC

Comply with EMC Directive 2014/30/EU

Keypad lock function

Keypad can be locked to prevent the misoperation.

Dimension(L X W X H)

240mm*211mm*155mm (including the external power supply and mounting bracket)

Power supply

100V - 240VAC, 100W,50~60Hz

Operating temperature

0°C - 40°C

Relative humidity

10%-90%

IP rating

IP65

Weight

5.56kg (including the external power supply and mounting bracket)
