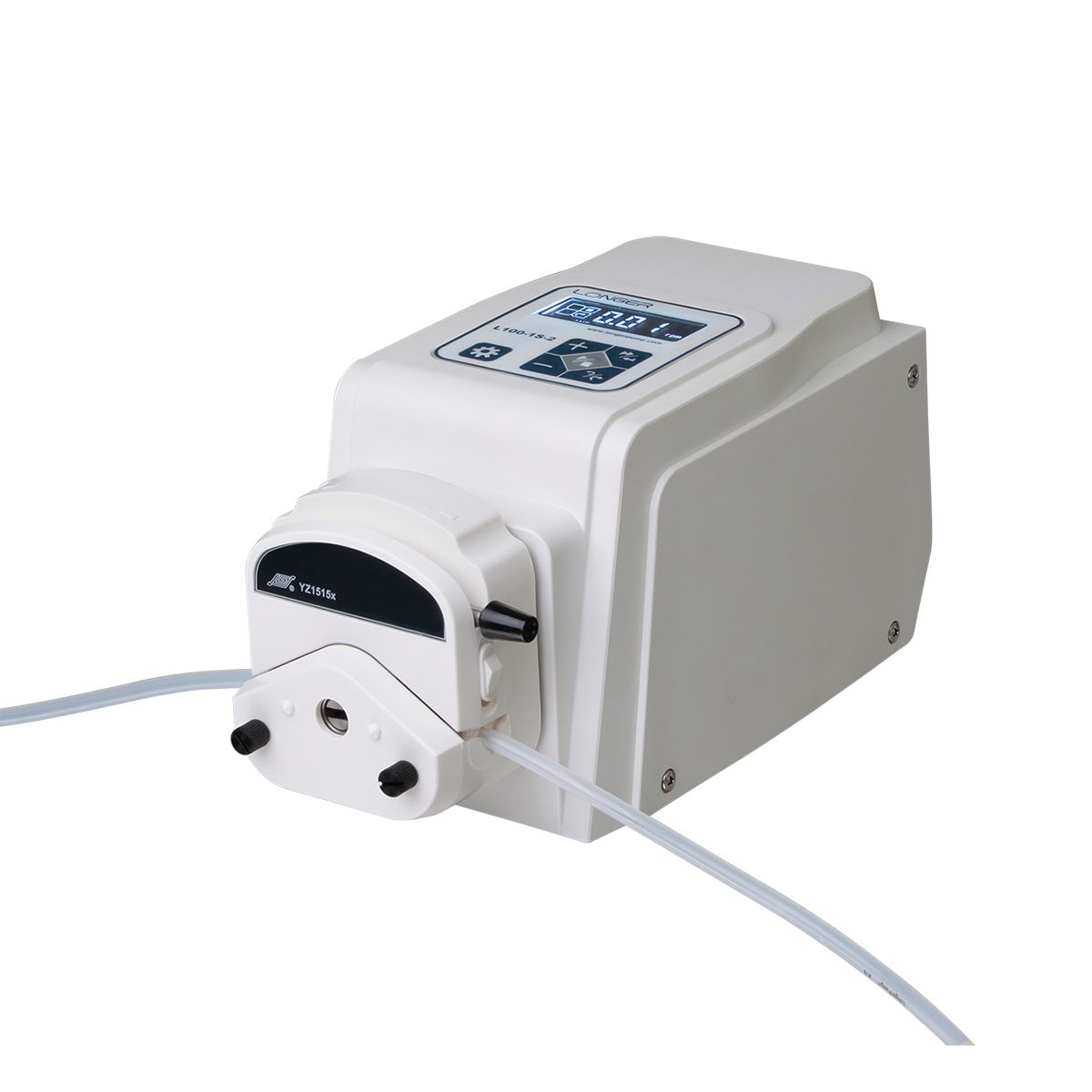

L100-1S-2 High-Precise microliter laboratory peristaltic pump 0,15 µl/min–500 ml/min - with external control
With precise speed control in 0.01rpm resolution (10000:1 turndown ratio), and flow rate calibration function.
High accuracy.
Flow rates: 0,00015ml/min-500ml/min
Max. Number of Channels: 8
The pump speed can be set in rpm and the flow rate in µl/min or ml/min.
Calibration function: The flow rate can be calibrated to increase accuracy.
External control：Start/stop control (switch signal), direction control (switch signal), speed control (0-5V,0-10V,4-20mA,0-10kHz are optional with uniform interface, from 0-10rpm in 0.01rpm resolution, from 10-100rpm in 0.1rpm resolution)
Communication control：RS485 interface, Modbus protocol, the communication parameters (address, baud rate, parity, stop bit) can be set through keypad.
on stock
Only %1 left
Article no
L100-1S-2
$ 792.00
Tubing & pump heads
|
Pumpenkopf |
Nummer |
Innendurchmesser |
Wandstärke |
max. Förderrate |
Gewicht |
|---|---|---|---|---|---|
|
YZ1515x, YZII15 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
0,8 - 7,9 mm |
1,6, 1,7 mm |
0,63µl/min - 366 ml/min |
ca. 5,4 kg |
|
YZ2515x |
15#, 24# |
4,8, 6,4 mm |
2,4 mm |
16µl/min - 266 ml/min |
ca. 5,4 kg |
|
YZII25 |
15#, 24#, 35#, 36# |
4,8 - 9,6 mm |
2,4 mm |
16µl/min - 500 ml/min |
ca. 5,4 kg |
|
FG15-13 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
0,8 - 7,9 mm |
1,6, 1,7 mm |
0,53µl/min - 400 ml/min |
ca. 5,3 kg |
|
FG25-13 |
15#, 24# |
4,8, 6,4 mm |
2,4 mm |
22µl/min - 366 ml/min |
ca. 5,3 kg |
|
DMD15-13-B |
2*13#, 2*14#, 2*19#, 2*16#, 2*25# |
0,8 - 4,8 mm |
1,6, 1,7 mm |
1,3µl/min - 345 ml/min |
ca. 5,4 kg |
|
DG15-24 |
16#, 25#, 17# |
3,2 - 6,4 mm |
1,6 mm |
8,2µl/min - 300 ml/min |
ca. 5,8 kg |
|
DG15-28 |
13#, 14# |
0,8 - 1,6 mm |
1,7 mm |
0,2µl/min - 75 ml/min |
ca. 5,7 kg |
|
DG-(1, 2, 4, 6, 8) - 6 Rollen |
≤3,17mm |
0,8 - 1,0 mm |
0,2µl/min - 48 ml/min |
ca. 5,2 - 5,6 kg |
|
|
DG-(1, 2, 4) - 10 Rollen |
≤3,17mm |
0,8 - 1,0 mm |
0,15µl/min - 32 ml/min |
ca. 5,2 - 5,6 kg |
Specifications pump system
|
Speed |
0.01rpm - 100rpm，CW/CCW |
|
Speed resolution |
0.01rpm resolution within the speed of 0.01rpm-10rpm, 0.1rpm resolution within the speed of 10rpm-100rpm |
|
Display |
LCD |
|
Control mode |
Keypad control |
|
Work mode |
Speed control mode and flow rate mode |
|
Flow rate mode |
Flow rate is displayed and the pump runs continuously at the set flow rate |
|
Flow rate calibration |
Improve the flow rate accuracy |
|
Flow rate setting range |
0.01uL/min-999L/min, unit could be set as uL/min, mL/min or L/min |
|
Timing function |
Set the running time (13 options), the pump could run/stop automatically |
|
Parameter memory |
Operating parameters will be saved automatically. |
|
Pump status when powered up |
The pump status when powered up could be set as stop or as the status before power loss. |
|
Prime |
Fast filling or emptying at full speed |
|
Keypad lock function |
Keypad can be locked to prevent the misoperation. |
|
Dimension(LxWxH) |
232*142*149(mm) |
|
Power supply |
AC100V～240V/25W，50/60Hz |
|
Operating temperature |
0°C - 40°C |
|
Relative humidity |
< 80% |
|
IP rating |
IP31 |
|
Weight |
2.38kg |
