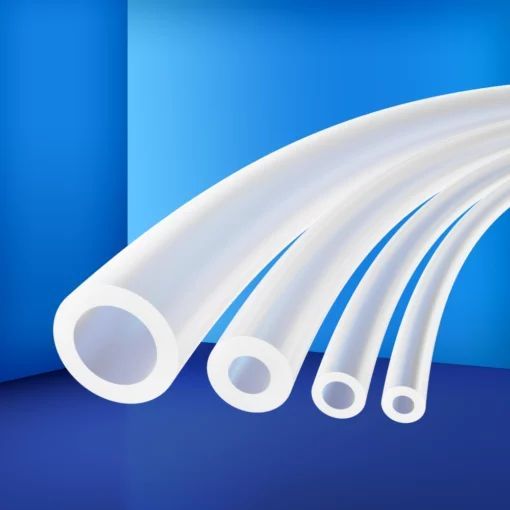

TPE Shore-A 54 Peristaltic Pump Tubing 1/32" ID x 3/32" OD - 15m
TPE-121 tubings with Shore A 54 are ideal for liquid transfer and have been specially developed for the usage in peristaltic pumps and pinch valves when a flexible tube is required.
Temperature range: -50°C and 121°C.
USP Class VI approval, clean room production according to ISO 10993-5 and ISO 10993-4 standard.
More Information
Article no
TPE121-.5-1.5
Colour
Transparent
Tube length (m)
15
Tubing size (WT)
1/32" (0.8mm)
Material
TPE Shore A 54
Shore
54
Tube size (ID)
1/32" (0.8mm)
Tubing size (OD)
3/32" (2.4mm)
Zertifizierung
ISO 10993-4, ISO 10993-5, USP 661, USP Class VI
Without PVC, DEHP phthalates or other plasticizers.
These tubing are non-animal derived, ultra-flexible and offer low gas and oxygen permeability and have very low extractable/leachable properties.
Shore A 54 TPE tubing meets a wide range of pharmaceutical, medical and bioprocessing applications.
Test-Data of TPE-121 tubing
Part no.
ID / OD / WALL
Primary Failure 2022
Working Pressure (bar)
Operating Pressure (bar)
Minimum Bend Radius (mm)
TPE121- 4mm-6mm
4mm / 6mm / 1mm
3.22
1.07
0.81
7.87
TPE121-.5-1.5
1/32" / 3/32" / 1/32"
8.35
2.78
2.09
1.52
TPE121-1-2
1/16" / 1/8" / 1/32"
5.64
1.88
1.41
3.3
TPE121-1-3
1/16" / 3/16" / 1/16"
8.12
2.71
2.03
2.54
TPE121-1.5-2.5
3/32"/ 5/32" / 1/32"
4.14
1.38
1.04
4.83
TPE121-2-3
1/8" / 3/16" / 1/32"
3.17
1.06
0.79
7.62
TPE121-2-4
1/8" / 1/4" / 1/16"
5.23
1.74
1.31
5.08
TPE121-3-4
3/16" / 1/4" / 1/32"
2.43
0.81
0.61
15.24
TPE121-3-5
3/16" / 5/16" /1/16"
3.8
1.27
0.95
7.87
TPE121-3-6
3/16" / 3/8" / 3/32"
5.26
1.75
1.32
7.62
TPE121-4-6
1/4" / 3/8" /1/16"
2.92
0.97
0.73
20.32
TPE121-4-7
1/4" / 7/16" / 3/32"
4.11
1.37
1.03
7.62
TPE121-4-8
1/4" / 1/2" / 1/8"
4.77
1.59
1.19
7.62
TPE121-5-7
5/16" / 7/16" / 1/16"
2.46
0.82
0.62
25.4
TPE121-6-8
3/8" / 1/2" / 1/16"
2.3
0.77
0.58
58.42
TPE121-6-10
3/8" / 5/8" / 1/8"
3.55
1.18
0.89
19.05
TPE121-8-12
1/2" / 3/4" / 1/8"
2.87
0.96
0.72
33.02
TPE121-10-14
5/8" / 7/8" / 1/8"
2.4
0.8
0.6
45.72
TPE121-12-16
3/4" / 1" / 1/8"
2.21
0.74
0.55
58.42
TPE121-16-20
1" / 1 1/4" / 1/8"
1.67
0.56
0.42
127
