Diaphragm valves are ideal for the precise control of gases and liquids in compact fluidic systems. Their separating diaphragm helps isolate the process medium from selected valve components, making them suitable for laboratory equipment, analytical instruments, gas analysers and medical technology. At FluidControl24, you can find diaphragm solenoid valves in different configurations, including 2-way and 3-way designs, with materials such as PEEK and PPS and various connection options. Use our filters to find a suitable valve for your application.
Diaphragm valves enable the reliable control of gases and liquids in compact fluidic systems. A separating diaphragm isolates the process medium from selected valve components, making this design suitable for applications where material compatibility, reliable sealing and separation of the medium from the actuator are important.
At FluidControl24, you will find a selection of diaphragm-isolated solenoid valves and miniature valve solutions for analytical instrumentation, laboratory equipment, medical technology, gas analysis and industrial fluidics. Discover different valve configurations, materials and connection types to find a suitable solution for your application.
The right diaphragm valve depends on the technical requirements of your fluidic system. Use our product filters to narrow down the available options by valve function, material and connection type.

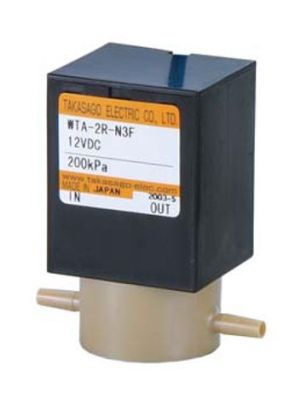

Different valve configurations are available to meet specific control requirements. 2-way normally closed diaphragm valves shut off the flow path when de-energised and open when actuated, subject to the operating conditions and the design of the individual valve.

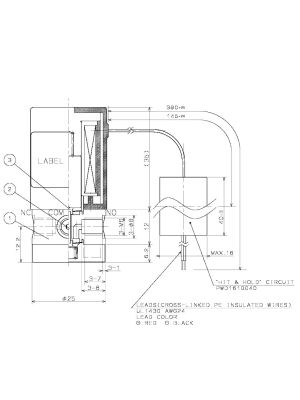

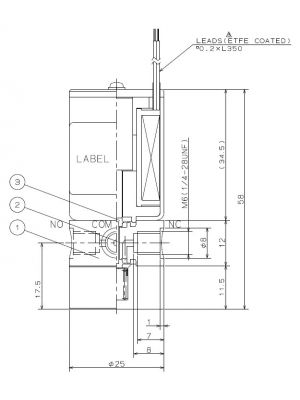

3-way diaphragm valves allow switching between different flow paths. Depending on the valve design, they can redirect media or connect different ports within a fluidic system. Always consult the product specifications to confirm the switching function and port configuration.
Material selection is an important factor in the performance and service life of a diaphragm valve. PEEK and PPS are engineering thermoplastics with different material properties. Their suitability depends on the process medium, temperature, pressure and the specific valve design.
Explore our PEEK diaphragm valves and PPS diaphragm valves. Before selecting a valve, check the technical data and the chemical compatibility of all wetted components with your process medium.
The connection type is an important consideration when integrating a diaphragm valve into a fluidic assembly. Depending on the system design, a defined threaded connection or a tubing connection may be required.
Our selection includes valves with 1/4-28 UNF connections and tubing nozzle connections. Check the dimensions and specifications to ensure compatibility with your existing tubing, fittings and installation requirements.
Diaphragm-isolated valves are used in analytical instruments, gas analysers, laboratory automation and compact fluidic systems. They support the controlled switching of gases and liquids in applications where space, material compatibility and reliable operation are important.
When selecting a valve, consider the process medium, operating pressure, temperature, required flow rate, electrical control requirements and available installation space. The technical specifications of the individual product should always be used to verify suitability for your application.
Are you looking for a compact diaphragm-isolated solenoid valve for an analytical, laboratory or industrial application? FluidControl24 offers valve solutions for a range of fluidic requirements. Use our product filters to narrow down the selection according to the technical characteristics that matter to your system.
Need help selecting the right valve? Contact our team with the key details of your application, including the medium, operating pressure, temperature, required switching function and connection type. We will be happy to help you identify a suitable solution.
Explore our complete range of diaphragm valves at FluidControl24 and find a suitable solution for your application.
